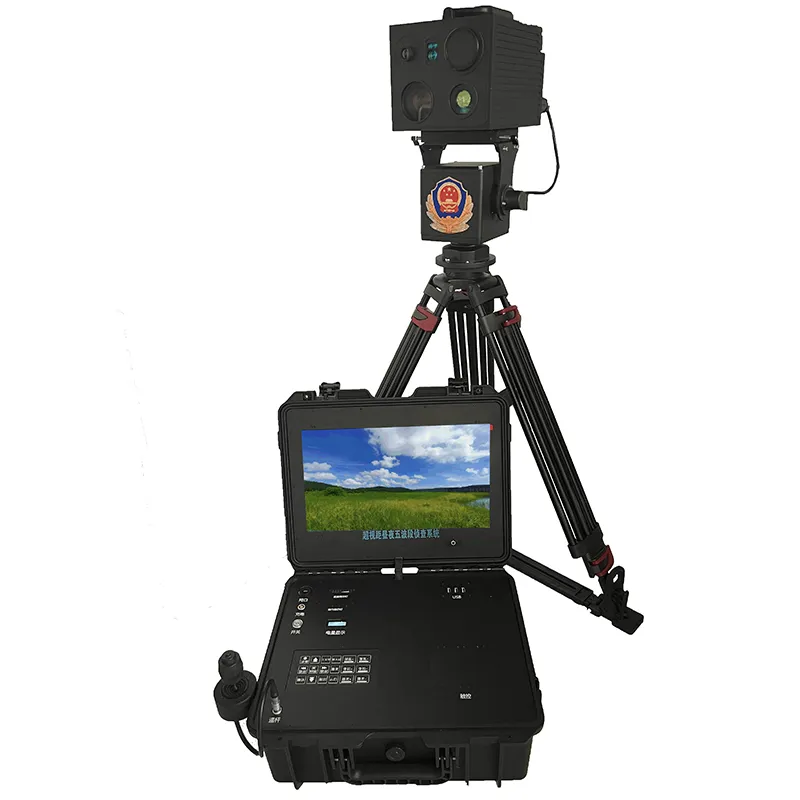

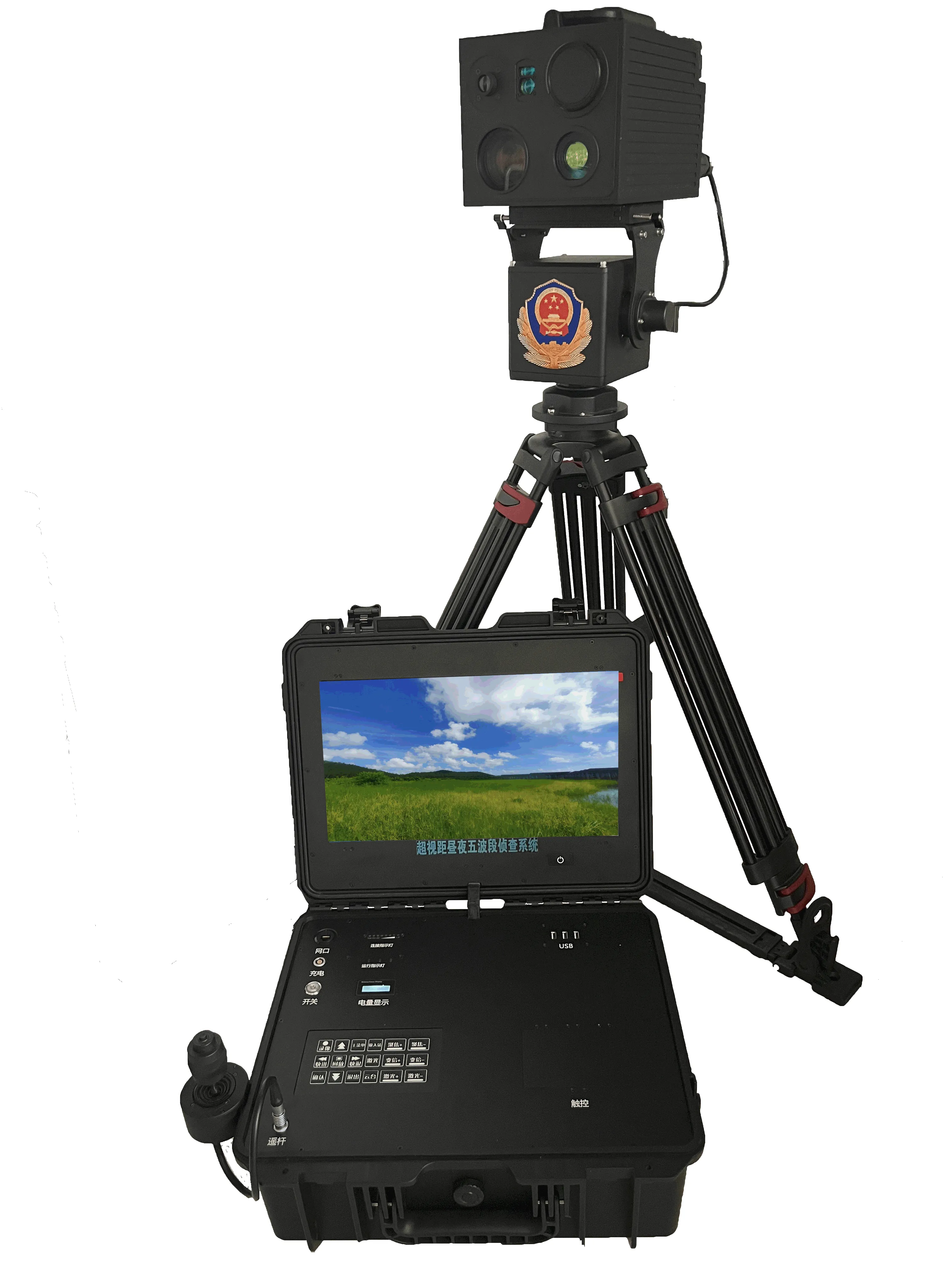

St50 Beyond-horizon Day And Night Five-band Reconnaissance System
Onick ST50 beyond-visual-range day and night five-band reconnaissance system has the characteristics of clear imaging, long monitoring distance, high performance, low power consumption, and fast installation speed. It is suitable for use by public security protection departments such as troops, border defense, public security, armed police, and communications.
€0
Product Details
Product Details
Onick ST50 beyond-visual-range day and night five-band reconnaissance system has the characteristics of clear imaging, long monitoring distance, high performance, low power consumption, and fast installation speed. It is suitable for use by public security protection departments such as troops, border defense, public security, armed police, and communications. It is an essential tool and means for evidence collection and monitoring in a completely dark environment at night.
Special departments have special missions, and the time, place, and occasion are random. This product can complete reconnaissance and evidence collection in environments ranging from clear sky and scorching sun to dim light at night, and even in a completely dark environment.
License plate recognition, infrared fill light, face recognition, ultra-long standby, encrypted transmission, multiple controls
Visible light, thermal imaging, laser ranging, large screen display, laser denial, pan-tilt control
Thermal imaging
Detector type: Vanadium oxide
Sensitivity: ≤35mk@25℃, F#1.0
Resolution: 384x288 / 640x512 (12um)
Field of view: 5.28°x3.96°/8.8°x7.07°
Working band: 8~14um
Pseudo color mode: 15 pseudo colors (white hot, black hot, brown, color, etc.)
Lens focal length: 50mm electric focus, electronic zoom
Visible light
Sensor: 1/2.8′′ ultra-low illumination CMOS
Focal length: 7~322mm, 46x optical zoom
Low illumination: 0.001Lux/F1.8 (color) 0.0001Lux/F1.8 (black and white)
Day and night conversion: turn on the laser, the camera automatically switches from color mode to black and white mode, turn off the laser and the camera automatically switches from black and white mode to color mode
Infrared fill light
Light power: 9.5W
Wavelength: 940nm (invisible to human eyes without red burst)
Irradiation angle: 0.8~70° continuous change
Spot size: automatic follow/manual adjustment
Laser ranging module
Ranging range: 2000m
Measurement accuracy: ±0.5m (within 400m) ≥400m (±d*0.3%)
Laser rejection
Power: 5W
Distance: ＞1000m
Spot size Small: Manual adjustment
Product composition
Front-end recognition system: thermal imaging, visible light, infrared laser, laser rejection
Back-end analysis system: image display, AI recognition, license plate recognition
Pan-tilt control system: 360° pan-tilt control
Physical characteristics
Product size: 250x186x180mm/370x190x440mm/200x150x1050mm
Overall weight: ≤7.5kg/8.3kg/5.2kg
Protection level: IP66
Working time: ≥10 hours (built-in lithium battery)
Working temperature: -25℃~+65℃
Storage temperature: -40℃~+70℃
