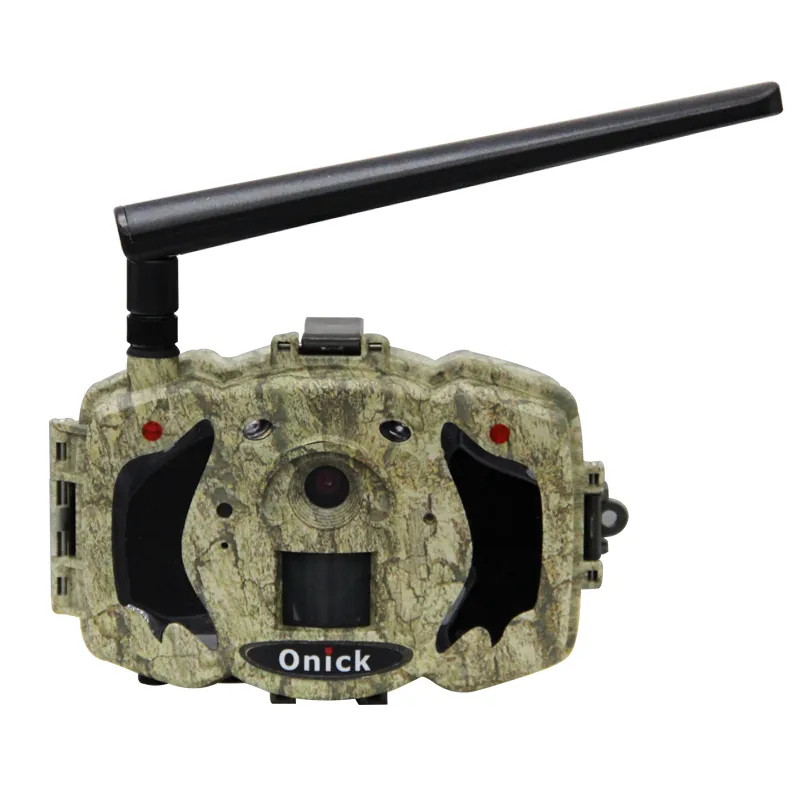

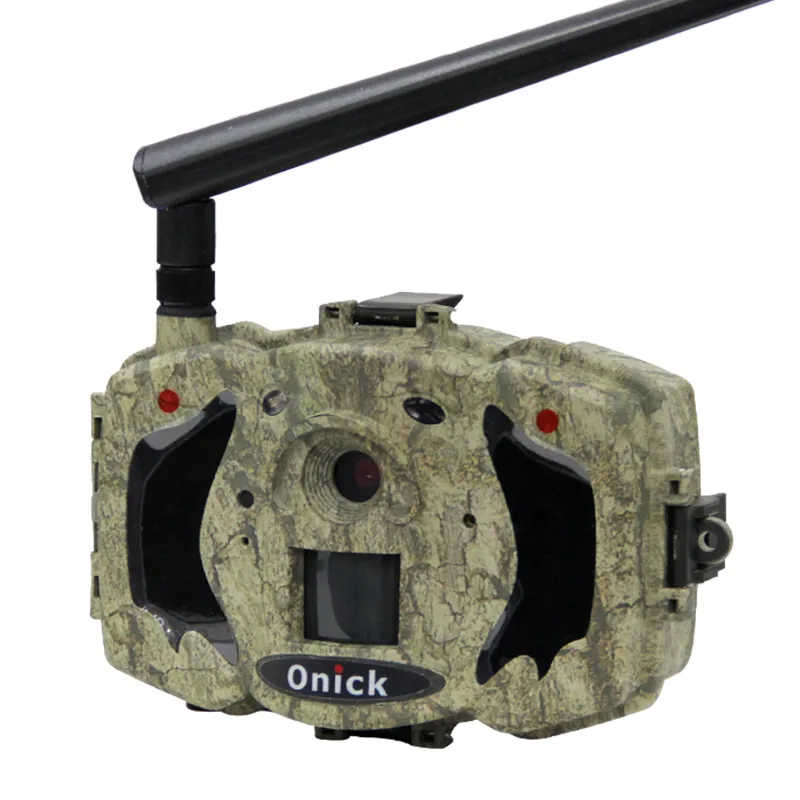

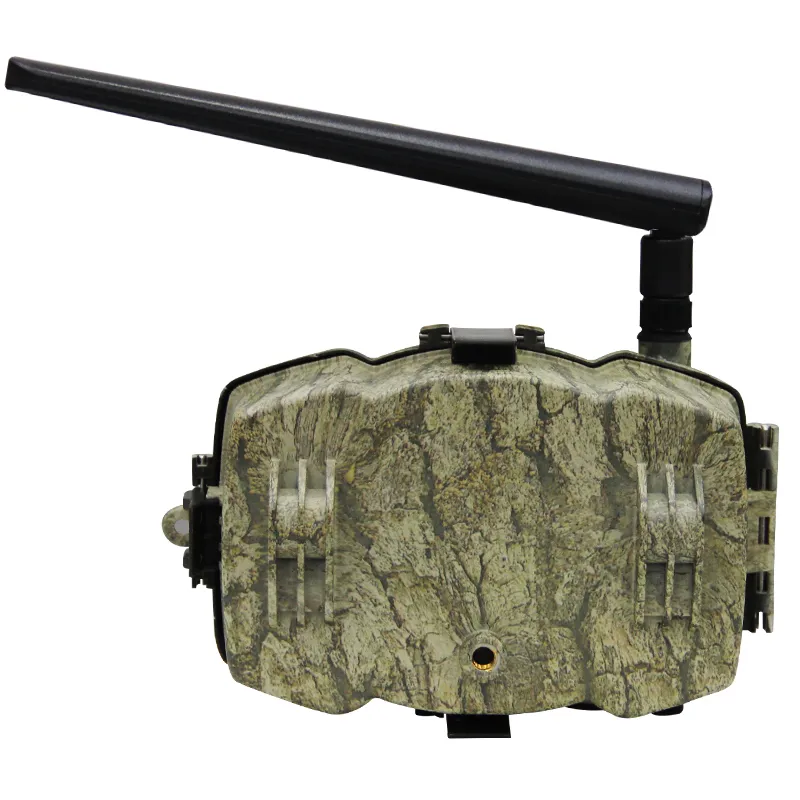

Onick AM-36 wildlife infrared monitoring camera with MMS version supports up to 36 million pixel high-definition photos and 1920x1080 high-definition video shooting. The instrument starts quickly, the image is clear, and the color is true. The flash-free design does not flash when shooting at night, and it is not easy to be exposed. Users can number and name the camera. It can be equipped with our independently developed cloud platform image processing system (software registration number: 2022SR0370995) to identify and analyze the captured pictures and videos. It can also be used with a mobile phone APP to remotely control the camera (software registration number: 2022SR0370994), remotely control and modify parameters, and remotely see the scene in real time.

Product features:

1. 36 million high-definition pixels for pictures, 1920x1080 for videos

2. PIR sensing distance of 30 meters

3. Support 4G image transmission function

4. Ultra-long standby time of 8 months

Product parameters:

Model: Onick AM-36

Image sensor: 14 million pixel CMOS

Lens: FOV=57°, F/NO=2.4

Infrared LED light: 940nm, no red exposure

Illumination distance: 30 meters

Display: built-in 2-inch TFT

Buttons: 7

Memory card: SD card (up to 32GB)

Photo pixels: 36MP (6912*5184), 25MP (5760*4320), 14MP (4320*3240)

Recording pixels: 1920x1080, 1280*720, 640x480

PIR sensing sensitivity: high/medium/low/off

PIR sensing distance: 30 meters

Working mode: day and night Daytime: color photos/videos Nighttime: black and white photos/videos

GPS location input: support input, the picture shows the camera location

Time from sensing to photo completion: ≤1 second

Automatic identification of SIM card: automatic identification of the three major domestic operators

Image transmission function: support access to cloud platform function, picture and video upload; support mobile phone APP

Camera password protection: support camera password setting, to protect the camera from being stolen to a certain extent

Trigger time interval: 0 seconds ~ 60 minutes (settable)

Number of continuous shots: 1~5

Recording length: 5-180 seconds (settable)

Photo + video: take photos first and then record

Time stamp: temperature, moon phase, date, time

Working time setting: off/on (settable, 00:00 to 23:59)

Sound lure: Off/On (settable, play music at a fixed time to attract animals)

Camera number setting: 5 or more letters and numbers

Timed photo: Off/On (settable, 0 seconds ~ 23 hours 59 minutes 59 seconds)

Key tone: On/Off

Cyclic storage: Off/On

Format SD: Supported

Restore default settings: Supported

Product version information: Supported

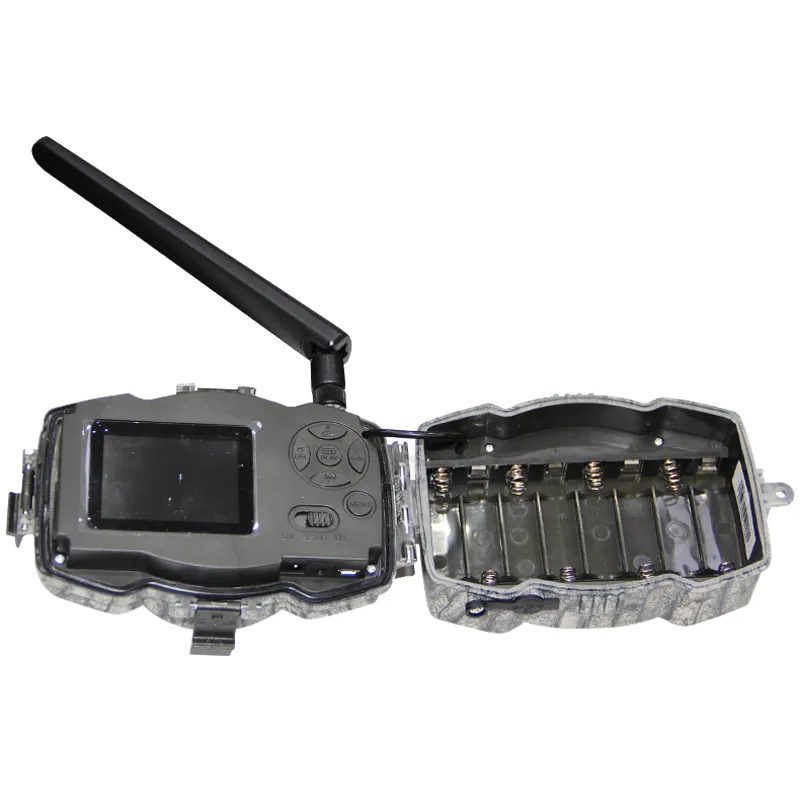

Power supply: 4 or 8 x AA

Low power reminder function: The battery power is displayed on the picture, and the low power SMS notifies the user or sends a message to the user interface of the specified server

Solar charging (optional): The external solar cell can power the camera, save battery power and extend the battery life

Standby: More than 6 months

Language: Simplified Chinese menu

Auto power off: If there is no key function operation in the test mode, the camera will automatically shut down after 3 minutes

Interface: Micro USB interface, SD card slot, 6V DC interface

Fixed method: tie strap, bracket

Installation calibration: with laser light to calibrate the installation direction

Dustproof and waterproof level: IP68

Cloud platform image processing system:

(1) Plan camera layout; display camera quantity and information;

(2) Remotely modify camera parameters; automatically identify valid photos; extract photo information;

(3) Automatic AI identification of animal species;

(4) Collect, import, classify and organize image data;

(5) Query, statistics and analysis of image data;

(6) User function permission management;

Working temperature: -20℃ ~ +60℃

Working humidity: 5% ~ 95%

Size: 147*96*79mm

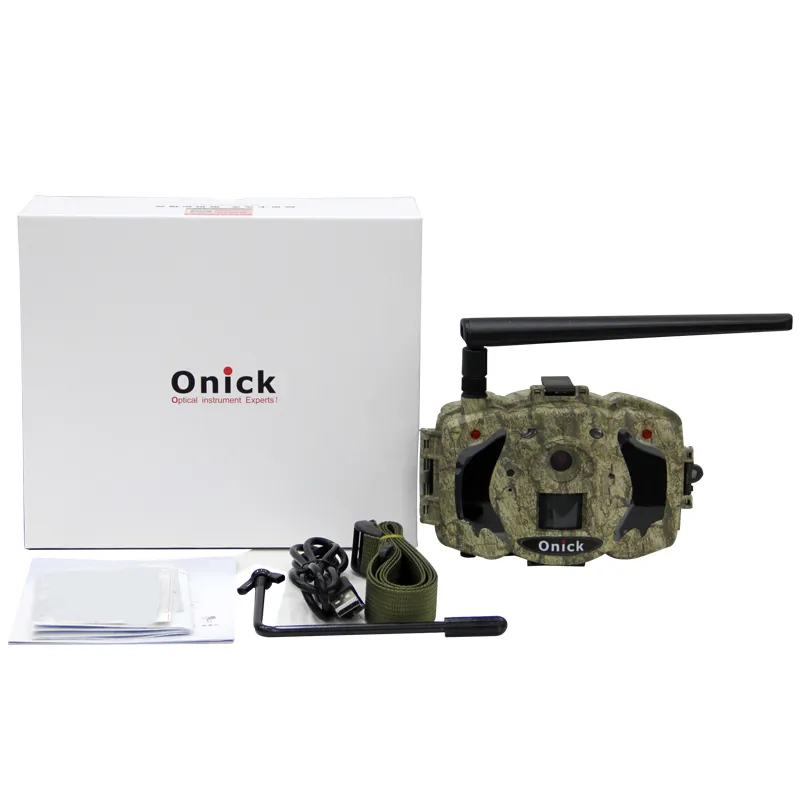

Accessories: strap, bracket, manual, warranty card

Applicable groups and uses:

1) Ecological surveys, phenology, environmental protection departments automatically monitor photography and video recording, such as automatic change monitoring of snow-capped mountains, grasslands, plants and plateaus

2) Plant ecological monitoring automatically monitors photography and video recording, and can be set to take photos at a fixed time to observe plant ecology

3) Various nature reserves, agricultural and forestry science institutes, forestry bureaus and other units, wildlife protection and forest inspection, wetlands, university life science institutes and natural museums, animal and plant protection associations, animal surveys and other scientific research and scientific expeditions, animal wildlife protection and other units, for animal and plant surveys, ecological monitoring, behavioral research or biodiversity surveys

4) Ecological photography enthusiasts, wildlife protection volunteer enthusiasts, animal ecological monitoring or field detection automatic photography and video recording, time-lapse photography, etc.

5) Hunting enthusiasts use it to detect animals and Its channel route types, etc., facilitate better route selection and hunting animals (please comply with the wildlife protection law of the country where you are located)

6) Automatic infrared monitoring to prevent theft and hunting in various nature reserves, forestry units, wildlife protection stations, forest police, forest economic crop sites, nurseries, animal farms, fish ponds and orchards

7) Traffic environment monitoring stations, meteorological bureaus automatically monitor visibility, etc.

8) Secret reconnaissance, inspection, law enforcement evidence collection, and monitoring in public security, procuratorial, judicial, prison and labor management offices

9) News reporters secretly observe, take photos and videos, investigate companies, and collect evidence by private detectives

10) Time-lapse photography, secret monitoring of supermarkets, construction sites, mines, warehouses, etc.

11) Secret monitoring in offices and homes and anti-theft evidence collection for home properties, installed anywhere indoors or outdoors, or monitoring the environment around villas and courtyards. Compared with ordinary surveillance cameras, no wiring is required, which is more concealed and more convenient to use

Illegal use is prohibited and the consequences are at your own risk
